The 4D ultrasound machine is the most advanced black and white ultrasonic equipment in the world.4D ultrasonic technology is based on the 3D ultrasonic image and with the time dimension parameters, which can obtain the 3D image in real-time. The 4D ultrasound can be used to check the abdomen, blood vessels, organelle, gynecology, urology, newborn, pediatrics, etc. Also, the 4D ultrasound can show the dynamic image in real time for the unborn baby or dynamic images for other internal organs.

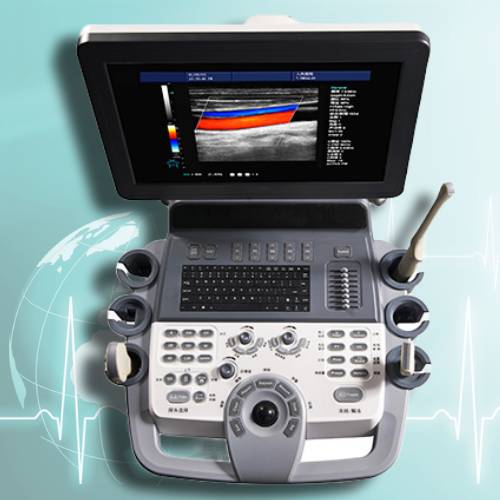

 Appearance

•  Smart and compact design
•  15-inch LED monitor
•  Flexible free arm
• Rotatable operation panel
• Backlit keyboard, 8TGC
• Four active probe connectors
• Six probe holders
• Four casters with brake

Transvaginal Ultrasound MSLCU30plus Probe (Transducer Types)

•  3.5Mhz convex probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)
• 7.5Mhz linear probe (6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz)
• 3.5Mhz micro convex probe (2.0/ 2.5/ 3.5/4.5/ 5.0Mhz)
• 6.5Mhz transvaginal probe  (5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz)
• 3.5Mhz phased array probe (2.1/ 3.0/ 3.5/ 4.0/ 5.0Mhz)
• 4D volume probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)

Applications

 Abdomen, Obstetrics, Gynecology, Pediatrics, Small parts, Artery,  Superficial organ, Orthopedics, Musculoskeletal, Vascular, etc.

The MSLCU30plus Functions

• Image optimization
• Speckled Reduction
• Tissue Harmonic imaging
• Dynamic apodization
• Dynamic aperture
• Directional Doppler Flow Imaging
• Edit the exam type and save the user‐defined items
• Pulse Wave Doppler
• DICOM 3.0(Optional)
• Panoramic Image  (Option)
• Trapezoid Image (Option)
• Continuous Wave Doppler(Option)
• TSF
• HPRF

MSLCU30plus  Display mode

• B, B|B,4B, B|M,M,B|B,B|C|D,B|D,PW,B|PW,CF,CW,4D

• Triplex mode

Zoom

•  Real time zooming

• 10 Steps:  ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0, ×9.0, ×10.0

• Selectable zooming position

Focus

• Continuous dynamic focus

• 1~16 selectable transmit focus

• Acoustic lens focus

• 1, 2, 3, 4 focus

Memory

 Cine‐memory

– B‐mode

– M‐mode

– Hard disk 500GB
